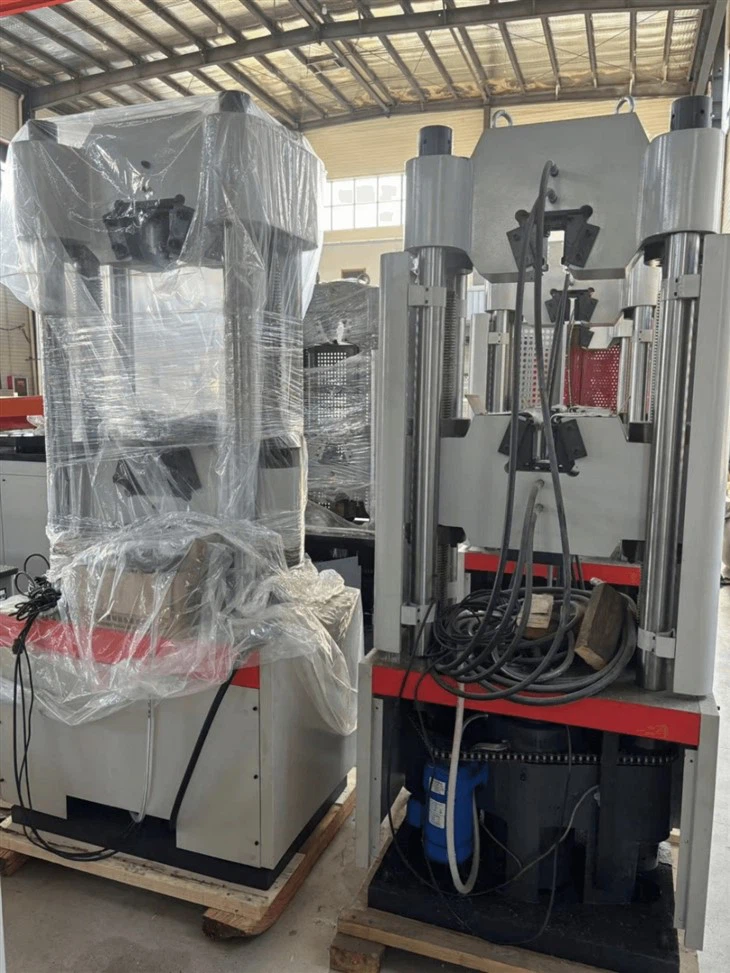

Khoos phib tawj tswj electro - hydraulic servo universal kuaj tshuab

1. Cov Khoom Siv Khoom Siv:COMPEGED Electro - hydraulic servo universal kuaj tshuab Cov Khoom Siv Khoom Siv: Waw -1500D

2. Cov ntsiab lus:

Lub ntsiab tshuab:Lub waw -} 1500D lub computer tswj electro {} Kev ntsuas tshuab hluav taws xob, tsis siv neeg cov ntaub ntawv, thiab kev ntsuas ua kom ua tau. Nws siv qis dua {4 4}} positioned lub tog raj kheej lub cav roj thiab servo channel kaw-lub zog ua tiav thiab tsis siv neeg ntsuas ntawm cov txheej txheem ntsuas. Nws yog tus cwj pwm ntawm kev ua siab zoo, kev txhawb nqa siab, thiab tuaj yeem txhim kho yooj yim nrog kev txhim kho tshuab ntsuas thiab tswj cov kev siv thev naus laus zis thiab hloov pauv cov qauv kev sim.

Daim ntawv thov tau txais:Mas siv rau tensile, compression, thiab dabtsi yog khoov ntawm cov hlau thiab tsis - meters. Muaj feem xyuam rau cov teb xws li metallurgy, kev tsim kho, lub teeb kev lag luam, aviapia, cov ntaub ntawv, cov tsev kawm qib siab, thiab cov tsev kawm ntawv. Kev sim sim thiab cov ntaub ntawv ua raws li cov cai ntawm GB / T228 {4 4}}}} nws tawv me me ntawm qhov ntsuas kub ntawm huab cua kub ".

3. Kev Tsim Kho thiab Kev Ntsuam Xyuas Cov Qauv Ntawm Cov Khoom:

GB / T16491-1996 "Hluav Taws Xob Cov Tshuab Ntsuas Kev Ntsuas Xyuas Thoob Ntiaj Teb"

GB2611-92 "Cov Kev Xav Tau Kev Xav Tau rau Kev Tshuaj Ntsuam Machine"

GB / T6825.1 {{- 2002 "}} part {}}}}}}}}}}}}}}} kev ntsuas lub zog"

GB1499.1-2007 Cov Kev Xav Tau Rau Cov Khoom Siv Neeg Kho Mob "

2006/42 / EC "Tsawg Voltage Kev Xav Tau"

2006/95 / EC "Cov Lus Qhia Cuam Tshuam"

4. Siv tau cov qauv kev xeem:

GB / T228 {-}}}}} dua 2010 "Metallic Cov Ntaub Ntawv - Tensile Testing ntawm Chaw Ntsuas Kub"

GB / T7314 {-|2005 "Metallic Khoom - Compression Testing ntawm qhov kub thiab txias"

GB / T14452-1993 "Txoj kev xeem rau cov khoom siv mechanical ntawm cov khoom hlau los ntawm dabtsi yog khoov"

JTGE30-2005 (JTG E30-2005) P87 "Cov kev qhia tshwj xeeb thiab kev sim ua kom Maas thiab Caas ua lag luam engineering"

GB / T8653-1988 "Txoj Kev Kuaj Rau Elastic Modulus, Cov Qauv Secant, Tangent Modulus, thiab Poisson tus piv ntawm cov hlau"

GB / T10128 "Metallic Cov Ntaub Ntawv - torsion testing ntawm qhov kub thiab txias"

5. Cov qauv theem pib thiab cov haujlwm tseem ceeb:

Lub ntsiab tshuab:Lub tshuab tseem ceeb tau txais ib plaub {- kab ntawv nrog kev sib xyaw ua ke hlau thaib hauv lub tog raj kheej muab tso rau hauv qab no. Cov qauv no muaj kev txo qis ntawm qhov siab ntawm lub tshuab loj, kev thauj mus los thiab txhim kho kom yooj yim, thiab ua kom tiav thiab txhim khu kev qha. Lub xeem lub platform nqa tau yog tsav los ntawm lub cev muaj zog, tso cai rau cov ntsia hlau yooj yim ntawm qhov chaw ua haujlwm thiab kev ua haujlwm yooj yim.

Kev Ntsuas Thiab Tswj System:Muaj kev ntsuas hluav taws xob - hydraulic tswj remo, ib qho kev ntsuas lub panoder, ib qho luam tawm panrod, ib qho kev ntsuas lub tshuab ntsuas hluav taws xob, thiab chav luam hluav taws xob.

Standard Electro - Kev Tswj Roj Hydraulic Hydraulic Hydraulic.



Load {{0} Gracective Throttle Ceev Tswj system tsim thiab kev siv microcomputer {}}} mte monstred hydraulic kuaj cov tshuab.

Nruab nrog high - Zoo italo roj twj tso kua mis, servo tsav, ua kom muaj kev ntseeg siab zoo thiab ruaj khov.

Siv tus kheej -} Adading System Dression, tsis muaj qhov sib txawv ntawm kev siv tshuab, thiab yooj yim pid kaw {{look tswj.

Lub raj xa hluav taws xob siv cov txheej txheem ntawm cov khoom siv nrog kev ua tau ruaj khov, ua kom ntseeg tau tias tsis txhim khu kev lag luam cov roj tawv tsis muaj roj.

Cov ntsiab lus tseem ceeb:

Cov suab nrov tsawg: tsawg dua 50 decibels nyob rau hauv siab tshaj plaws ua haujlwm thauj, zoo nkauj.

Zog - txuag: 70% ntau dua zoo tshaj li cov khoom siv.

Kev tswj hwm siab yog: Tswj Qhov tseeb tuaj yeem ncav cuag 0.01% (PEM TSIB yog 0.05%).

Tsis muaj kev tswj hwm thaj chaw: Tswj pib taw tes tuaj yeem ncav cuag 1%.

Muaj kev sib xyaw ua ke cov roj ncig nrog cov ntsiab lus xau me me.

Hluav Taws Xob Tswj Txee:

All strong electrical components are concentrated in the strong electrical control cabinet, effectively separating the strong electrical unit from the measurement and control weak electrical unit, ensuring long-term stable operation of the measurement and control system.

Kev tuav cov khoom lag luam siv hluav taws xob, suav nrog lub zog hloov, nres tsheb thaum muaj xwm ceev, thiab cov roj tawm hauv dej pib / nres.

High - Desolution dig contrigter:

Lub kaw lus siv PC lub computer ua lub cev loj, nrog kev tswj hwm lub PC kom haum, thiab piston hloov chaw, thiab hloov pauv ntawm cov qauv tswj hwm.

Lub kaw lus yog muaj ntawm peb lub cim qhia chaw (chav kuaj hluav taws xob, hluav taws xob ntsuas hluav taws xob (electro {} Kev tswj lub tshuab hluav taws xob

Lub kaw {{0} Vaccuit Court Circuit Court, cov ntsuas hluav taws xob, cov teeb tsa lub siab (cov teeb tsa ntau dua li qub) ntawm kev sim quab yuam, roj lub tog raj kheej Piston kev pov tseg, thiab muaj qee yam deformation; Nrog ntau hom kev tswj hwm xws li kev sim ua ntu zus tas mus li, kev hloov pauv tsis tu ncua, thiab lwm yam.

Daim Ntawv PC Tshwj Xeeb POS - Hom Tsis Siv Neeg Tswj Amplifier ua rau kev kuaj lub tshuab:

Pluggable PC daim npav siv cov kev thauj khoom thauj khoom zoo siv computer, Digital Minnage, cov ntaub ntawv digital {}} tswj cov ntaub ntawv tau txais, digital I / O, thiab lwm yam.

Qhov kev ntsuas tshwj xeeb thiab cov PC ua ib qho kev ntsuas thiab kev tswj hwm thiab cov ntaub ntawv tau yooj yim, qhov kev tswj hwm thiab cov ntaub ntawv tau yooj yim thiab txhim khu kev qha.

Siv cov khoos phis tawj computer, tso rau hauv lub khoos phis tawj, xoom kev hloov kho, thiab lwm yam.

Programmable GetCade Amplifier Amplifier rau kev sib txawv nce amplification.

Tib voltage yog siv rau cov hluav taws xob tsis zoo thiab cov ntaub ntawv hluav taws xob ntawm A / D Nti, ua tiav cov khoom khomob kho vajtse rau cov khoom siv hluav taws xob.

Multi - ntsis A / D Conversion to ua kom tau raws li cov txheej txheem rhiab thiab daws teeb meem software cov txheej txheem txo cov yam ntxwv.

Kuaj Software:

Kev khiav hauj lwm yooj yim nyob rau hauv Windows Platform nrog lus Askiv interface (Maxtest).

Lub koos pij tawj cov ntaub ntawv kuaj, Piston hloov chaw, Chaw thau khoom cov ntaub ntawv, thiab tuaj yeem sib tw ua ke / deformation, deformation} Kev sim quab yuam, thiab lwm yam; Cov txheej txheem kev ua tiav, nrog cov txheej txheem cov ntaub ntawv ntsib cov qhab nia ntawm GB / T228 {{{tus qauv uas tsis muaj kev cuam tshuam rau cov ntsiab lus ntawm sab saud, thiab ua tau raws li cov kev ntsuas siab ntawm lub tshuab kuaj.

Lub software tseem muab cov ntaub ntawv tshawb xyuas cov ntaub ntawv kom tau raws li cov neeg ua haujlwm xeem kom tau raws li cov neeg ua haujlwm soj ntsuam thiab ntsuas cov ntaub ntawv tshwj xeeb.

Cov kab ke nra ua haujlwm, xws li kev ntsuam xyuas kev sib tw thiab cov duab kos duab, cim ua haujlwm, cursor hauv qab cov haujlwm, thiab lwm yam.

Siv Vxds High - ceev cov ntaub ntawv tau txais thev naus laus zis kom ua tiav multi} channel (txog 16}} ceev cov ntaub ntawv nrhiav tau.

Ua tiav cov ntaub ntawv ua haujlwm rau kev khaws cia cov kab khawb thiab cov ntaub ntawv xeem; Cov ntaub ntawv sim kuj tseem tuaj yeem khaws cia hauv ASCII hom ntawv rau cov neeg siv los ua cov ntaub ntawv theem nrab.

Kev ua haujlwm rau luam tawm cov ntaub ntawv xeem ib zaug thiab cov ntaub ntawv xeem Batch.

Cov kev tswj hwm tau tshaj tawm muaj ntau zog, tshaj - chaw teeb meem, piston ncav qhov chaw txwv, thiab lwm yam kev tiv thaiv.

Independent nyuam tsawg - part clamping roj av los tswj lub puab tsaig thiab tso tawm ntawm lub puab tsaig.

6. Qhov ntsuas cov txuj ci tseem ceeb:

Qhov siab tshaj plaws yuam: 1500kn.

Kev Ntsuas Hluav Taws Xob Ntsuas Ntau Yam: 2% -100% FS.

Test Forder ntsuas qhov tseeb: Qhia tau raug ± 1%.

Qhov chaw siab tshaj plaws: 700 hli.

Qhov chaw siab tshaj plaws compression: 600mm.

Deb ntawm txhua kab: 650mm.

Piston Cov Kev Hloov Piston Kev Ntsuas Xyuas: ± 1% FS.

Kev ntsuas dag kev ntsuas daws teeb meem: Tsis tsawg dua 1/300000.

Kev ntsuas dag ntsuas qhov raug yog: ± 1%.

Sensors: Roj Siab Sensor, Cov Ntaub Ntawv Photoelectric, Exensometer.

Kev tswj hom: Electro - hydraulic servo raug tshem tawm {} hom voj tswj, tswj hom tuaj yeem hloov tau.

Kev ntsuas hom: Khoos phib tawj tshuaj ntsuam ntawm kev sim quab yuam, piston

Lub Tshuab Lub Ntsiab Tseem Ceeb: kwv yees li 1270mm × 830mm × 3100 hli; piston tsa.

Tswj cov txee qhov ntev: 1000mm × 900mm × 1100mm.

Roj Lub Cev Muaj Zog Zog: 2.2 KW.

Beam zog lub zog muaj zog: 1.1kW.

Qhov hnyav: kwv yees li 7500kg.

7. Cov teeb tsa tseem ceeb:

Tsis yog.	Lub npe	Kev qhia tshwj xeeb	Hom	Qho ntau
1	Lub cav tseem ceeb	1500kn	Jinan Nake	1 Txheej
A	Rooj Ua Haujlwm	1500kn	Jinan Nake	1 Daim
B	Sab saud nqaj, nqaj nruab nrab	1500kn	Jinan Nake	1 Daim
C	Lub hauv paus	1500kn	Jinan Nake	1 Daim
D	Roj Lub Tog Raj Kheej		Jinan Nake	1 Daim
Tag Nrho: lub tshuab loj suav nrog saud - d 4 cov khoom
2	Servo Twj Roj Roj		Jinan Nake	1 Daim
A	Ac Servo Tsav		Hangzhou Jiugu	1 Txheej
B	Directional Valve, Solenoid Valve	DSD-01-3c	Jinan Chuangbo	1 Txheej
C	Roj Cov Txee	10.91.1 (meters)	Jinan Nake	1 unit
D	Roj Twj	GHP1A - d-5-fg	Ltalis Marzocchi	1 unit
E	Roj Lub Cev Muaj Zog	2.2kw	Wannan Tsav	1 unit
F	Valve Thaiv Thiab Roj Lim		Jinan Nake	1 unit
TAG NRHO: Servo Twj Roj Roj suav nrog saum toj ib - f 6 cov khoom
3	Cov Uncplacement Ecoder	2000 kab	Changchun Beatixin	1 Txheej
4	Thauj Sensor	30MPA	Ningbo Zhenhai	1 Daim
5	Koob piv tawj	19-nti LCD	Pasi	1 unit
6	Inkjet Tshuab Luam Ntawv	A4	Hp	1 unit
7	Kuaj xyuas software	AS800 daim npav	Maxtest	1 Txheej
8	Dual - channel programmable amplifier		Jinan Nake	1 Txheej
9	P PC Tswj Kev		Jinan Nake	1 Txheej
10	Lub taub kaum ntxiv	Tiaj Tus Puab Tsaig 0-35-65mm; Round puab tsaig φ15-35-φ65 hli	Jinan Nake	1 Txheej
11	Compression Accessories	204 * 204mm	Jinan Nake	1 Txheej

8. Cov ntaub ntawv tsis pub lwm tus paub txog cov ntaub ntawv kev thiab cov ntaub ntawv:8.1 Cov lus pom zoo no yog rau peb lub tuam txhab cov ntaub ntawv, thiab tus neeg siv yog lub luag haujlwm kom cov ntaub ntawv cov ntaub ntawv thiab cov ntaub ntawv muab los ntawm Asmeskas. Cov lus qhia no yog siv tau ntev, tsis hais txog seb puas tau hais tias cov lus thov tau saws los yog tsis yog} peb kuj tau yuam kom cov neeg siv cov ntaub ntawv thiab cov ntaub ntawv tsis pub lwm tus paub.

9. Txhim kho ntawm lub tshuab kuaj:

Nruab rau kev ua haujlwm ruaj khov lossis tiaj thiab tawv.

Sim kom tsis txhob muaj chaw muaj huab cua siab, xws li nyob ze lub qhov rooj thiab qhov rais.

Tsis muaj qhov cuam tshuam loj hauv hluav taws xob hauv ib puag ncig.

Tiv thaiv kev tshav ntuj ncaj qha lossis qhov sib thooj rau cov cuab yeej cua txias, thiab lwm yam.

Ambient Kub: 20 ± 5℃nrog cov xuab moos hloov tsawg dua 2 degree; Tus txheeb ze cov av noo: tsawg dua los yog sib npaug rau 80%.

Power ntau: 50Z.

Lub hwj huam muab voltage: AC380 ± 10V, 50Hz, hwj chim 3.0KW.

Lub zog hluav taws xob yuav tsum muaj cov hlau xaim hluav taws xob, uas tus neeg siv yuav tsum tau them nyiaj tshwj xeeb rau. Txij li lub tshuab muaj kev tiv thaiv hauv av, yog tias lub zog hluav taws xob tsis muaj cov xov hlau hauv av siv, muaj kev pheej hmoo ntawm hluav taws xob.

Theem hloov kho: Tso cov qib ntawm kev sim tshuab platform thiab kho cov plaub kho tau ko taw hauv qab no los ua qhov kev sim tshuab platform. Nyob rau lub sijhawm no, lub tshuab loj yog ntsia.

10. Tom qab {{{1} kev muag khoom:

Tag nrho lub tshuab yog lav rau 1 xyoo, thiab cov software system yog kev pabcuam rau lub neej nrog hloov tshiab pub dawb.

Kev cob qhia pub dawb rau tsawg kawg 2 tus neeg ua haujlwm ntsuas kom txog thaum lawv tuaj yeem ua haujlwm ywj pheej.

Mus ntsib cov neeg siv tsis tu ncua, nrog cov kev thov cov kev pabcuam teb rau hauv 2 teev thiab tuaj txog ntawm tus neeg siv chaw nyob hauv 4-12 teev.

11. Cov Khoom Siv Xa Khoom Ua Si:Feem ntau 30 hnub.

Cim npe nrov: Khoos phis tawj Intrectro - hydraulic universal kuaj tshuab, Tuam Tshoj lub koos pij tawj fydraulic rau kev kuaj tshuab, cov khoom lag luam
